| When you want to insulate your
plant and machinery and human
lives from Fire and Smoke , think
of NRC PVG Belts. |
|
Download PDF |

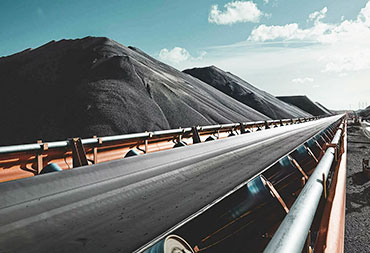

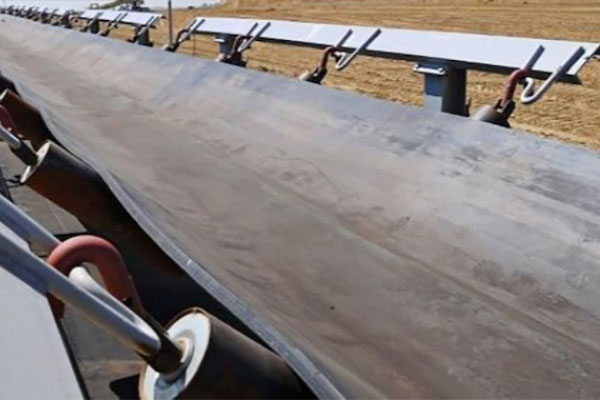

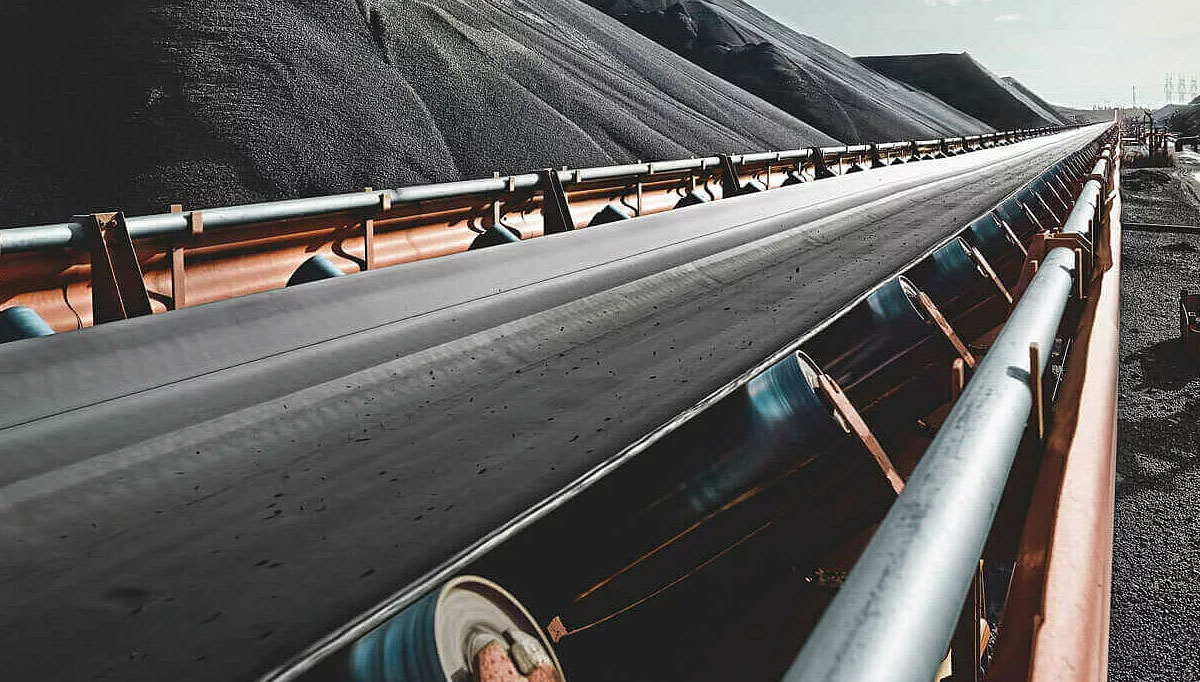

PVG Conveyor Belting, the proven high-performance and reliable mode of material handling, are
becoming increasingly popular. We offer innovative solutions to specific material handing problems
using PVG Conveyor belts.
PVG stands for Poly Vinyl Gummy
PVG’ is the term generally used for PVC impregnated solid woven belting fitted with synthetic
rubber covers
‘FRSR’ is the term – meaning Fire Resistant Synthetic Rubber
WHY USE PVG CONVEYOR BELT?
Following are the properties of PVG belting as PVC
and Rubber belting properties, all these properties
are advantages to PVG Conveyor beltings
| PVC CONVEYOR BELTING |
PVG CONVEYOR BELTING |
| Excellent fastener holding capacity |
High elasticity |
| No ply separation since solid woven |
Excellent grip |
| Excellent Fire-resistant property |
High Abrasion resistance |
| Excellent Trough-ability |
Good impact resistance |
| Chemical resistance |
Higher Cover thickness possible |
| High strength |
Various Cover grades possible |
| High Durability |
Vulcanized splice joints possible |
PVG Belt Specification
| Belt designation lbs/in |
Warp strength N/mm |
Weft strength N/mm |
Minimum Recommended Drum diameter mm |
| High tension |
Low tension |
| 3500 | 630 | 275 | 400 | 315 |
| 4000 | 710 | 300 | 400 | 355 |
| 4500 | 800 | 300 | 500 | 355 |
| 5000 | 875 | 300 | 500 | 355 |
| 6000 | 1000 | 350 | 630 | 400 |
| 6500 | 1140 | 350 | 630 | 400 |
| 7000 | 1250 | 350 | 750 | 450 |
| 8000 | 1400 | 350 | 750 | 450 |
| 9000 | 1600 | 425 | 800 | 500 |
| 10000 | 1800 | 425 | 800 | 600 |
| ------- | 2000 | 425 | 1000 | 750 |
| 12000 | 2100 | 425 | 1000 | 750 |
| ------- | 2500 | 425 | 1000 | 750 |
| 15000 | 2625 | 425 | 1000 | 800 |
